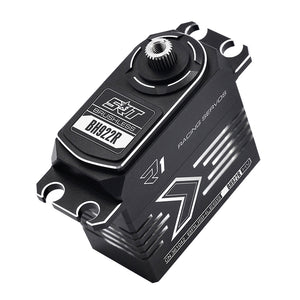

SRT BH922R High Voltage 22Kg Servo

SRT BH922R High Voltage 22Kg Servo

  • $199.00
    Unit price per
Tax included.


KEY FEATURES

  •  Ideal for 1/10 on road and 1/8 off road scale applications
  •  Superior Holding Speed
  •  incredible efficiency and low power consumption
  •  Standard dimension make it perfect for vehicles that can benefit from a high  quality servo
  •  CNC Machined aluminum case for exceptional cooling
  •  NMB dual main bearings
  •  25T output shaft
  •  HD 4096 Resolution
  •  2 μsec Dead Band
  •  1-Year Limited Warranty


PRODUCT SPECIFICATIONS

  • Type: Digital
  • Bearing: Dual
  • Motor Type: Brushless
  • Gear Type: Metal
  • Gear Material: Titanium & Steel
  • control system: pulse width control
  • working frequence: 1520μs / 330hz
  • operating voltage: dc6.0-8.4v
  • operating temperature range: -10 to + 60 degree
  • operating speed (6.0v): 0.10 sec/60 degrees at no load
  • operating speed (7.4v): 0.075 sec/60 degrees at no load
  • operating speed (8.4v): 0.07 sec/60 degrees at no load
  • stall torque (6.0v): 21.0kg.cm (291.6 oz/in)
  • stall torque (7.4v): 23.0kg.cm (319.4 oz/in)
  • stall torque (8.4v): 27.0kg.cm (374.9 oz/in)
  • potentiometer drive: direct drive
  • dimensions: 40x20x38.0 mm /1.57x0.79x1.49 in
  • weight: 70.0g (2.47 oz)
  • connector wire length: jr 250 mm
